🧱 Standard Consistency Test of Cement
📘 Aim

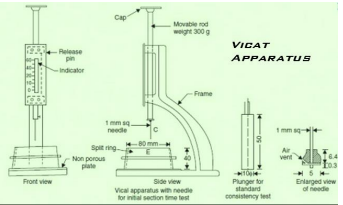

To determine the standard (normal) consistency of cement paste using the Vicat Apparatus.
⚙️ Apparatus Required
- Vicat Apparatus
- Plunger (10 mm diameter, 50 mm long)
- Measuring cylinder
- Stopwatch
- Weighing balance (accurate to 1 g)
- Trowel
📏 Theory
The standard consistency of cement is the percentage of water required to prepare a cement paste that allows the Vicat plunger to penetrate 33–35 mm from the top of the mould. This value is essential for conducting other cement tests like setting time, soundness, and compressive strength.
🧮 Formula
P = (W / C) × 100
- P = Standard consistency (%)
- W = Weight of water (g)
- C = Weight of cement (g)
🧪 Procedure
- Take 400 g of cement in a clean tray.
- Add about 25% water by weight of cement and mix thoroughly for 3–5 minutes.
- Quickly fill the Vicat mould with the paste and smooth the surface.
- Place the mould under the Vicat plunger and lower it gently until it just touches the surface.
- Release the plunger and note the penetration depth.
- Repeat the procedure with varying water percentages (26%, 27%, 28%, etc.) until the plunger penetrates 33–35 mm from the top.
📊 Observation Table
| Trial No. | % of Water Added | Penetration (mm) | Remarks |
|---|---|---|---|
| 1 | 25% | 20 | Too stiff |
| 2 | 26% | 25 | Slightly stiff |
| 3 | 27% | 32 | Near consistency |
| 4 | 28% | 34 | Standard consistency |
| 5 | 29% | 37 | Too fluid |
✅ Result
The standard consistency of the given cement sample = 28%.
📚 Precautions
- Conduct the test at a temperature of 27°C ± 2°C and relative humidity of 65% ± 5%.
- Use clean and dry apparatus.
- Mix water and cement thoroughly and quickly.
- Test should be completed within 3–5 minutes after adding water.
🧩 Significance
- Helps determine water requirement for other tests (setting time, soundness, etc.).
- Ensures workability and uniformity of cement paste.
- Indicates cement quality and hydration efficiency.
🧠 Typical Range
For Ordinary Portland Cement (OPC), the standard consistency is generally between 26% and 33%.
📘 Conclusion
The standard consistency test determines the water percentage required to produce a cement paste of uniform plasticity. The obtained value of 28% falls within the permissible range, indicating the cement is suitable for use in laboratory and field testing.
